Residential design, Warehouse conversion

Presen board (Concept)

Presen board (Ground floor)

Presen board (First floor)

Presen board (Section A)

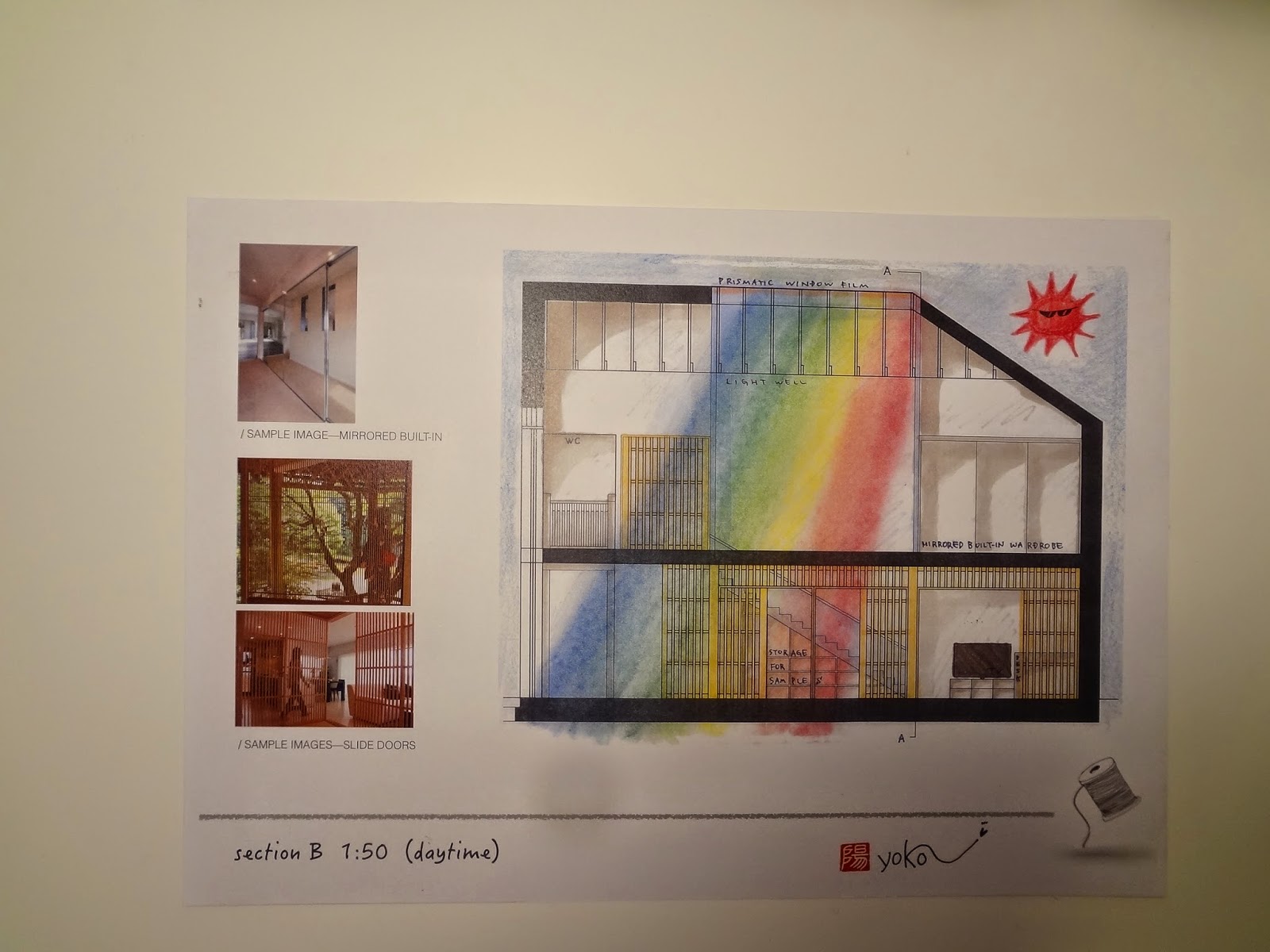

Presen board (Section B-Day time)

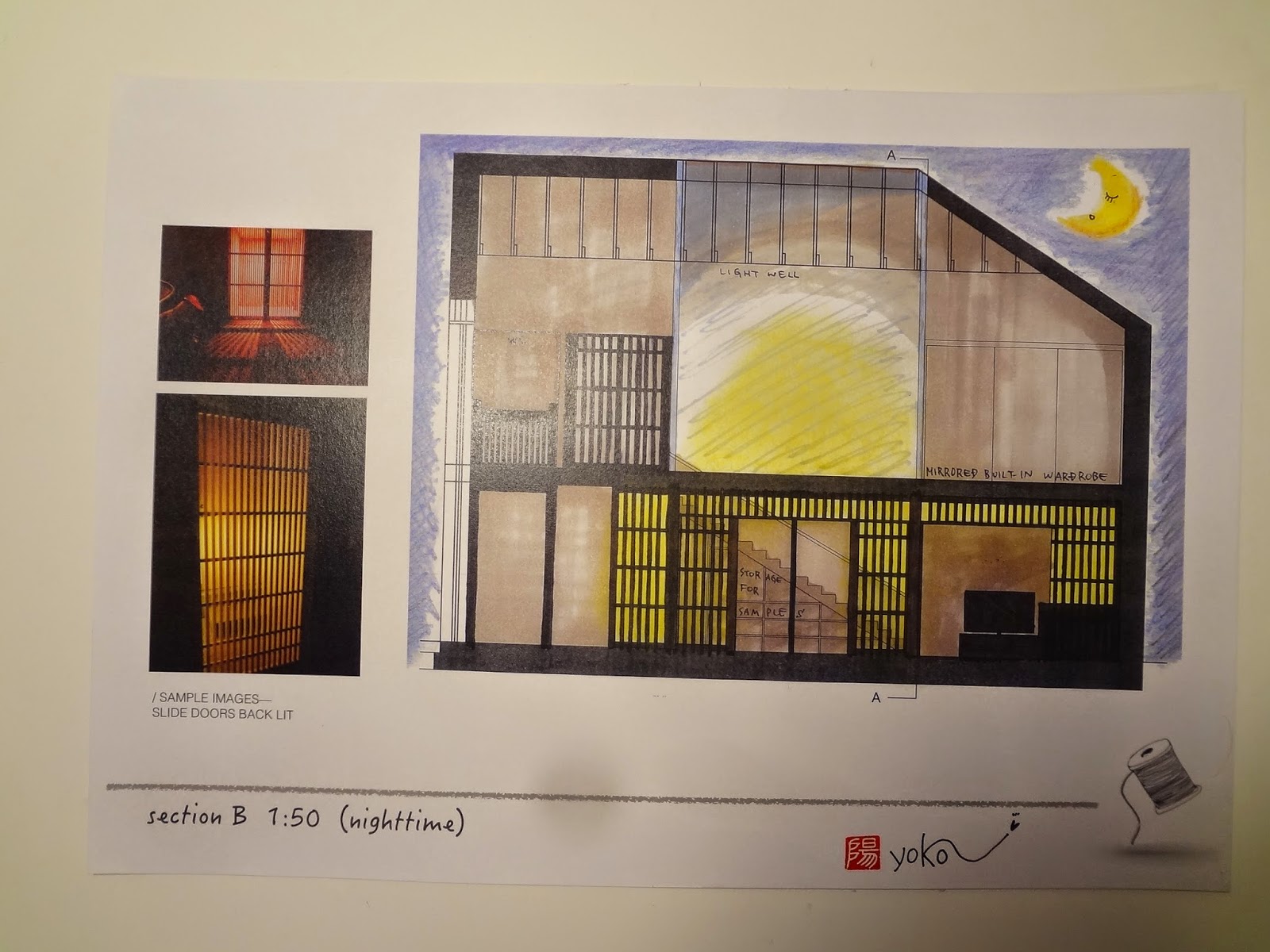

Presen board (Section B-Night time)

Presentation board (Perspectives)

Ground floor

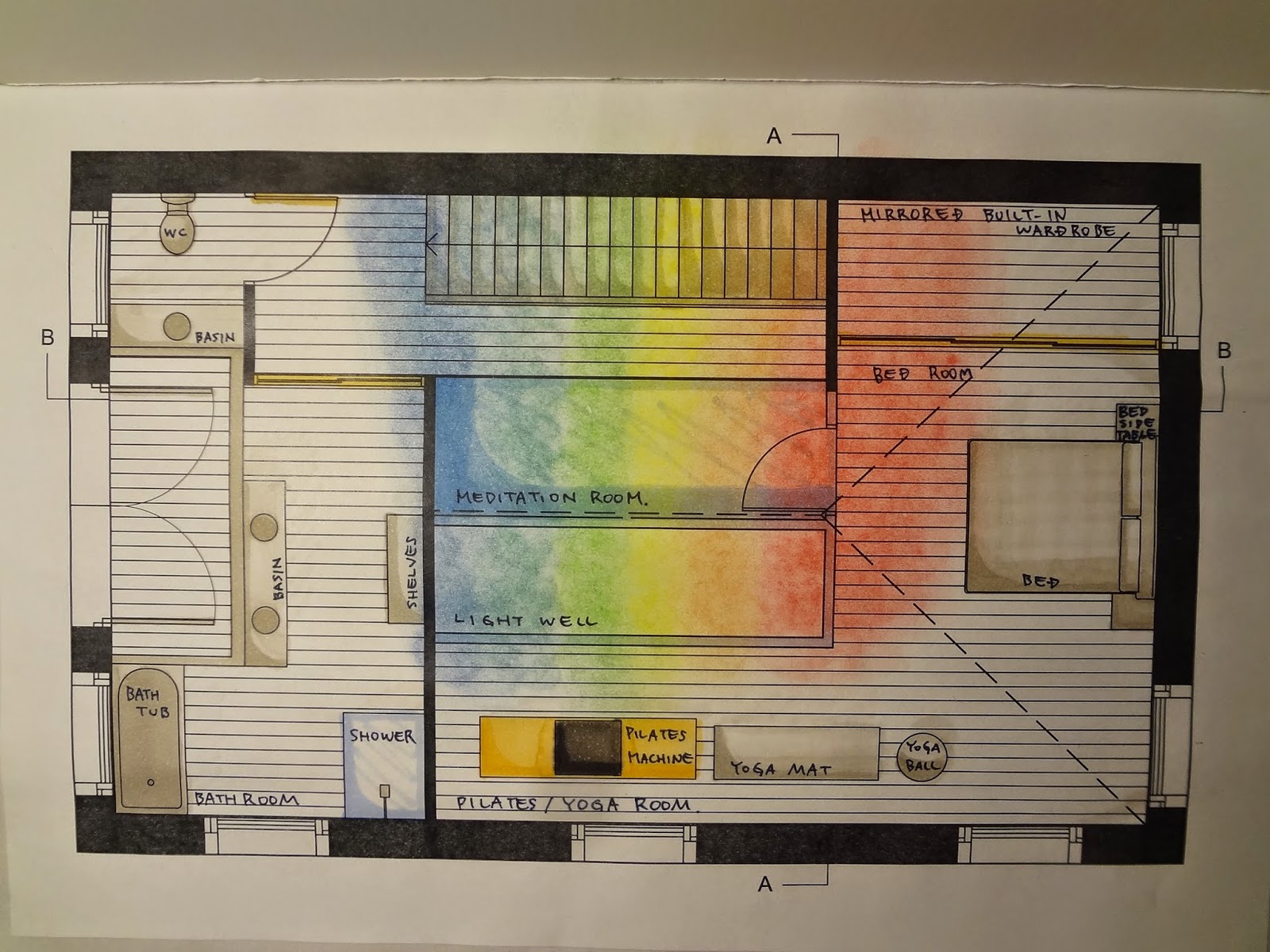

First floor

Section A

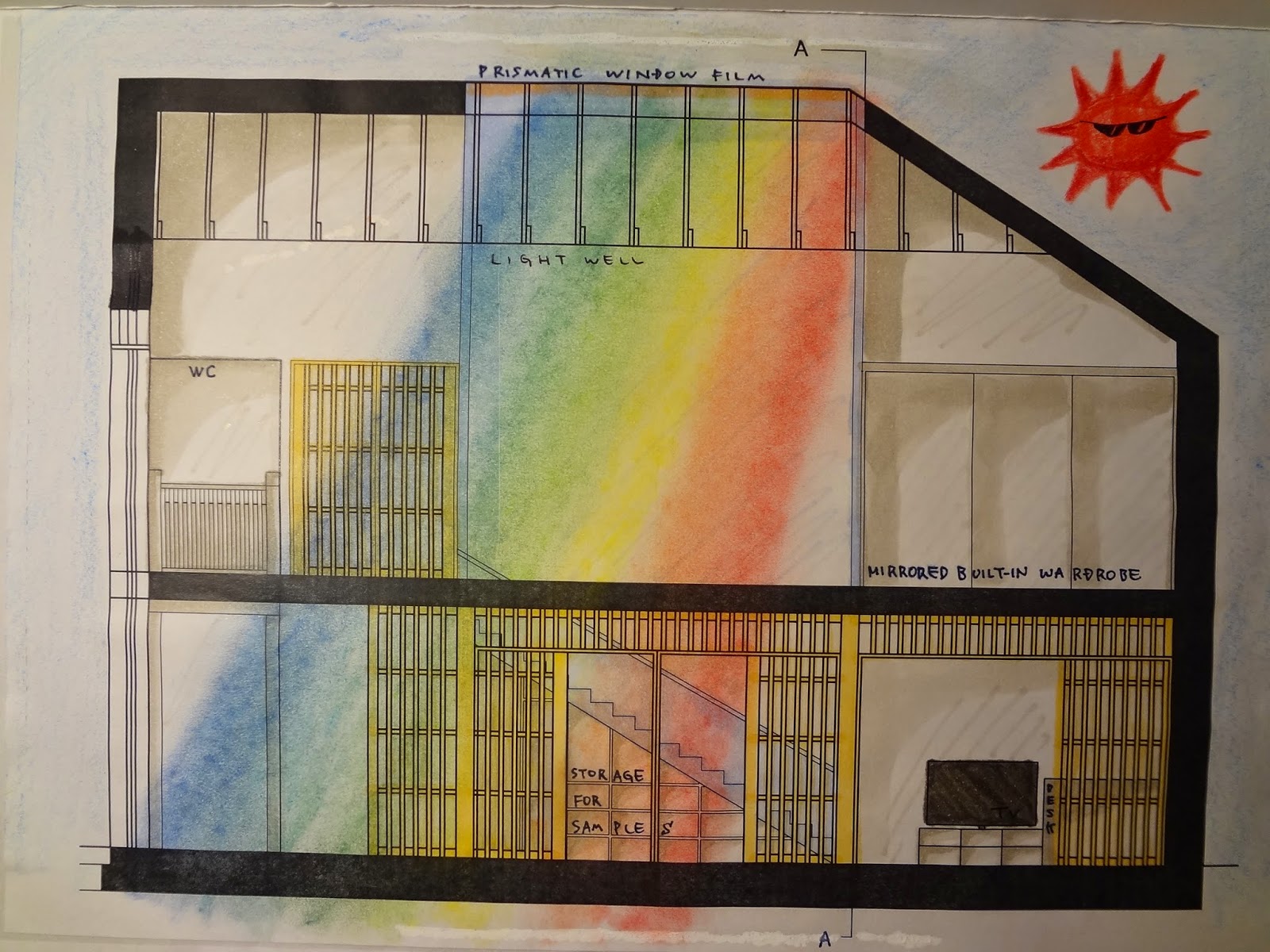

Section B (Daytime appearance)

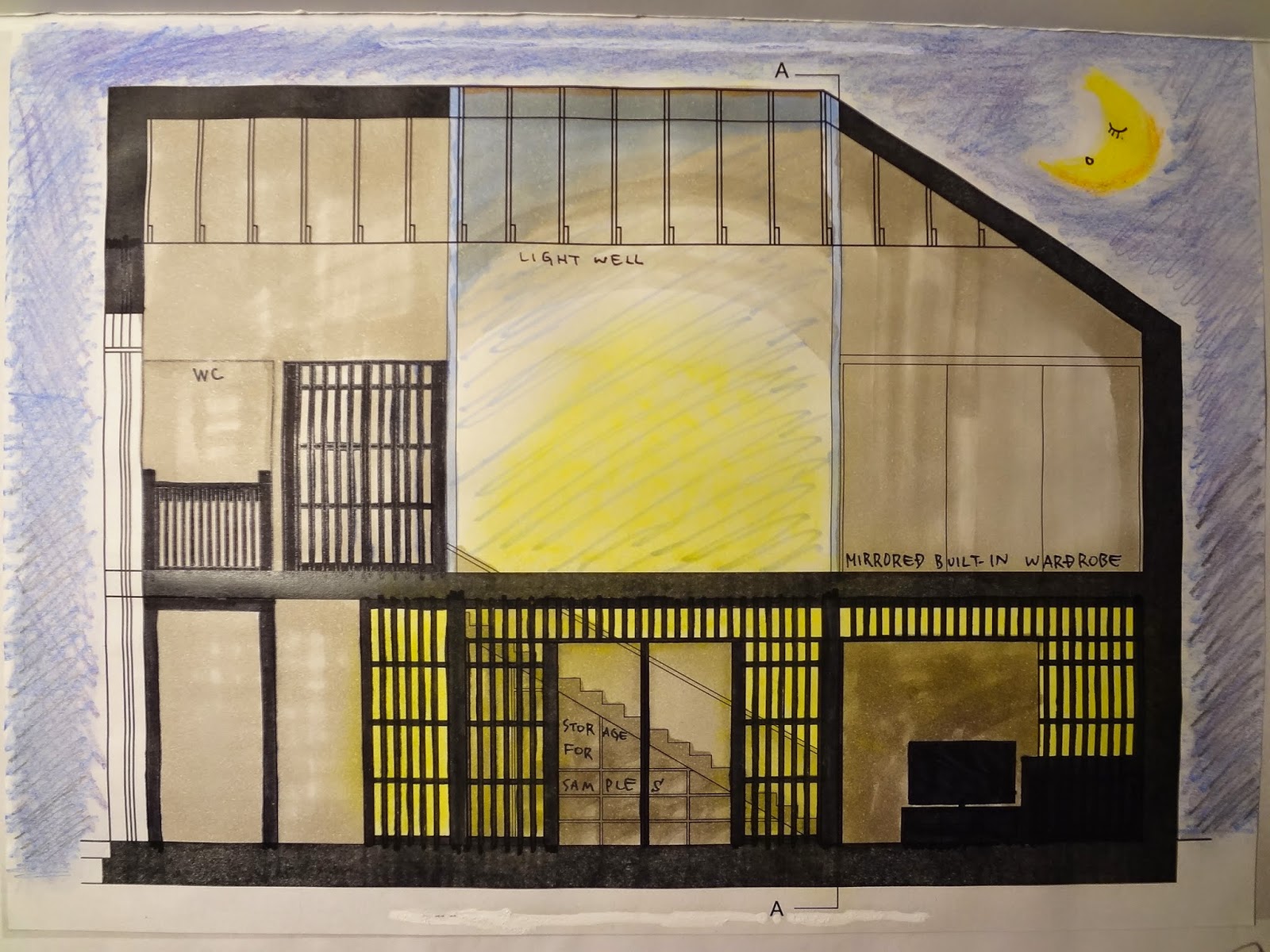

Section B (Night time appearance)

Perspective (Looking up the Meditation space from the ground floor)

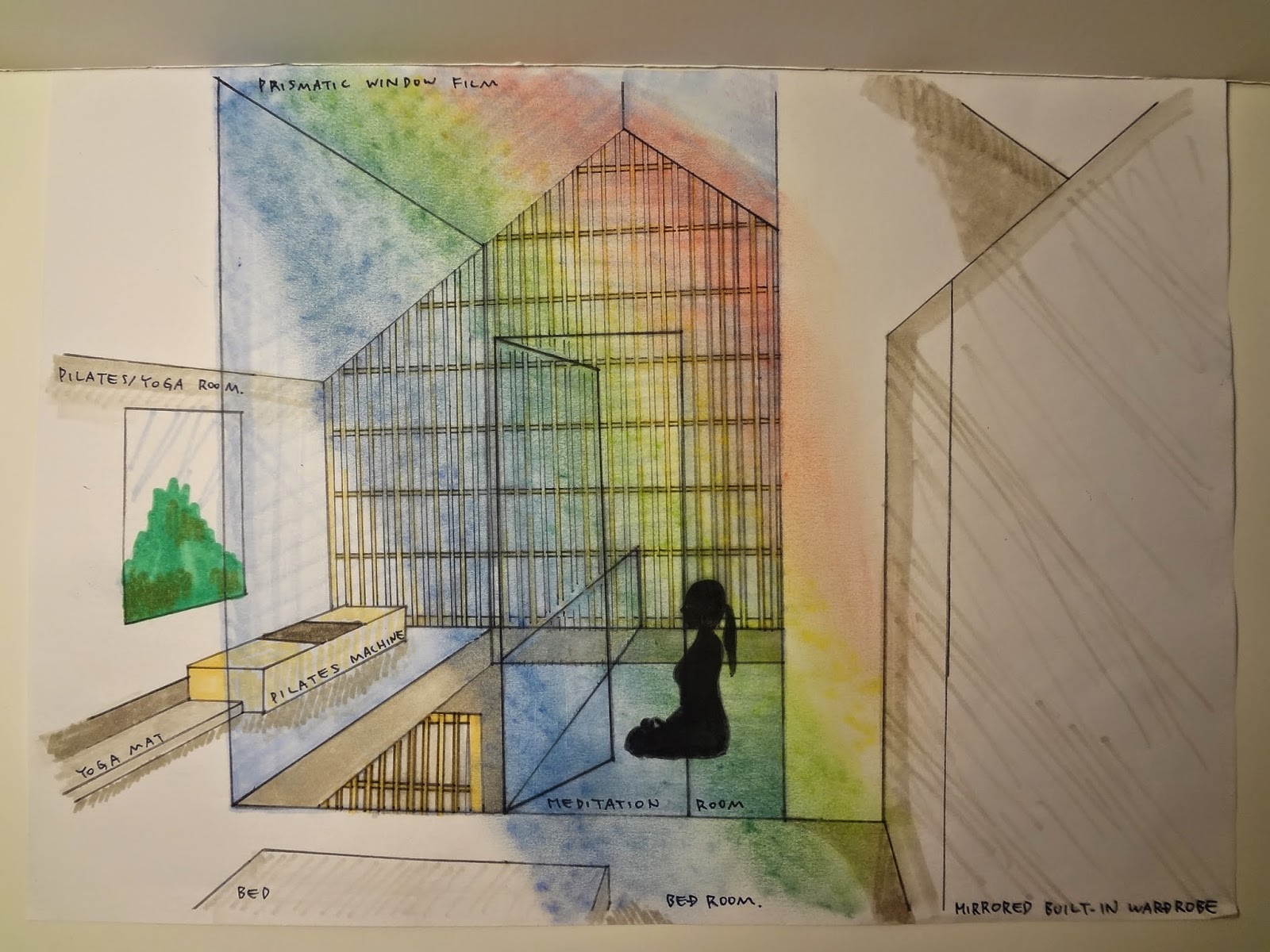

Perspective (Looking at the Meditation space on the first floor)

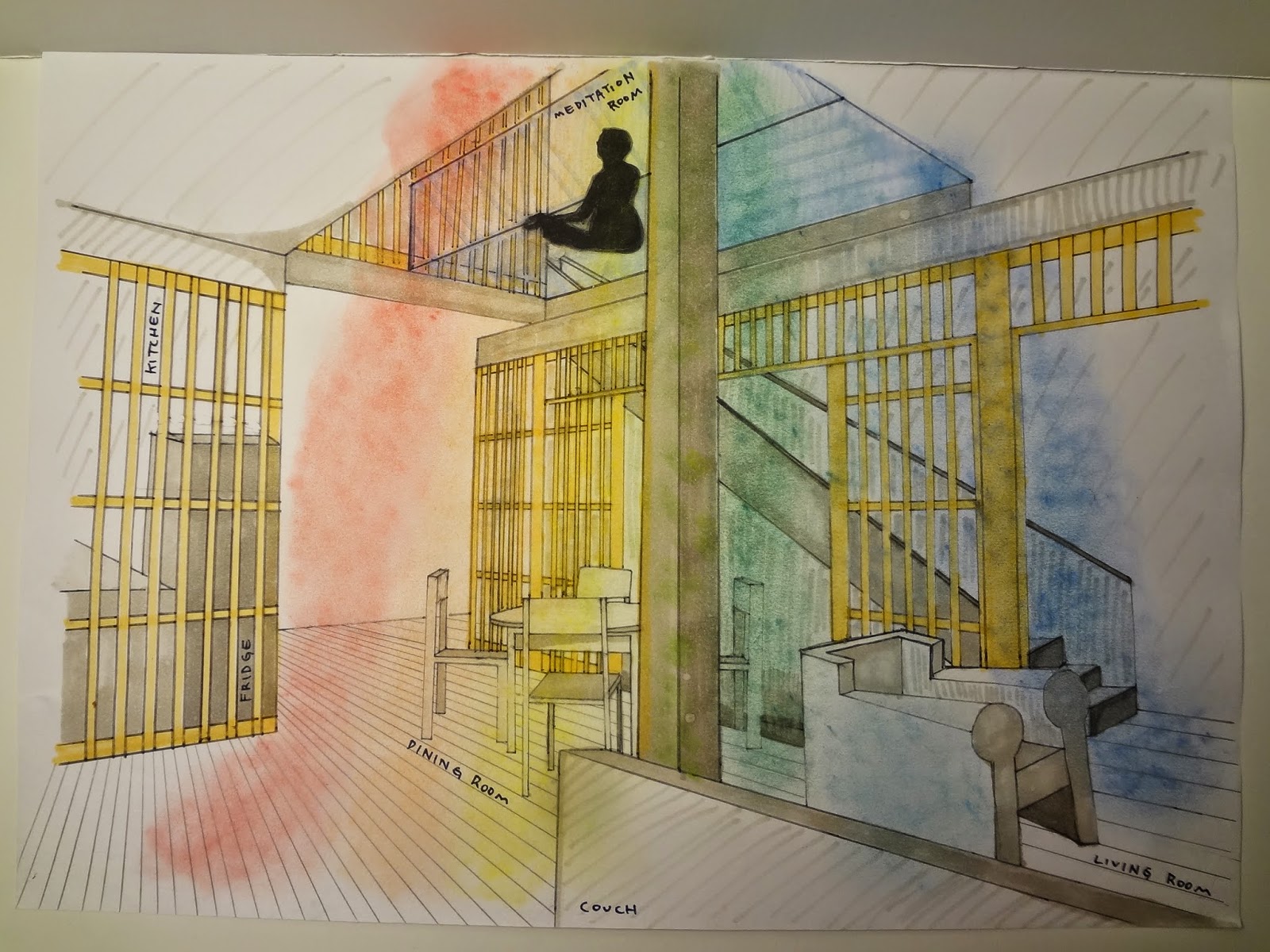

Perspective (Looking at the Meditation space from the top of the staircase)

Meditation room on First floor (in a transparent walls/floor space)

Kitchen/Dining room on the ground floor

Work desk on the ground level (a pic of a  black cat on the Mac computer)

From West

From North west

From North

From East

From above

Bathroom on the first floor

Stairs behind the timber wall

[16 SEP, 2014]Another couple sleepless nights… Now I’ve compleated rendering all my drawings,  and then, mounted them onto the presentation boards.  I had presented the boards to my teachers today!! I received pretty good feedbacks on them. It was tough process, but very rewarding. One more big presentation to do this Friday before my well-deserved 2 weeks school holiday!! (I sometimes have to catch up on my sleep!)

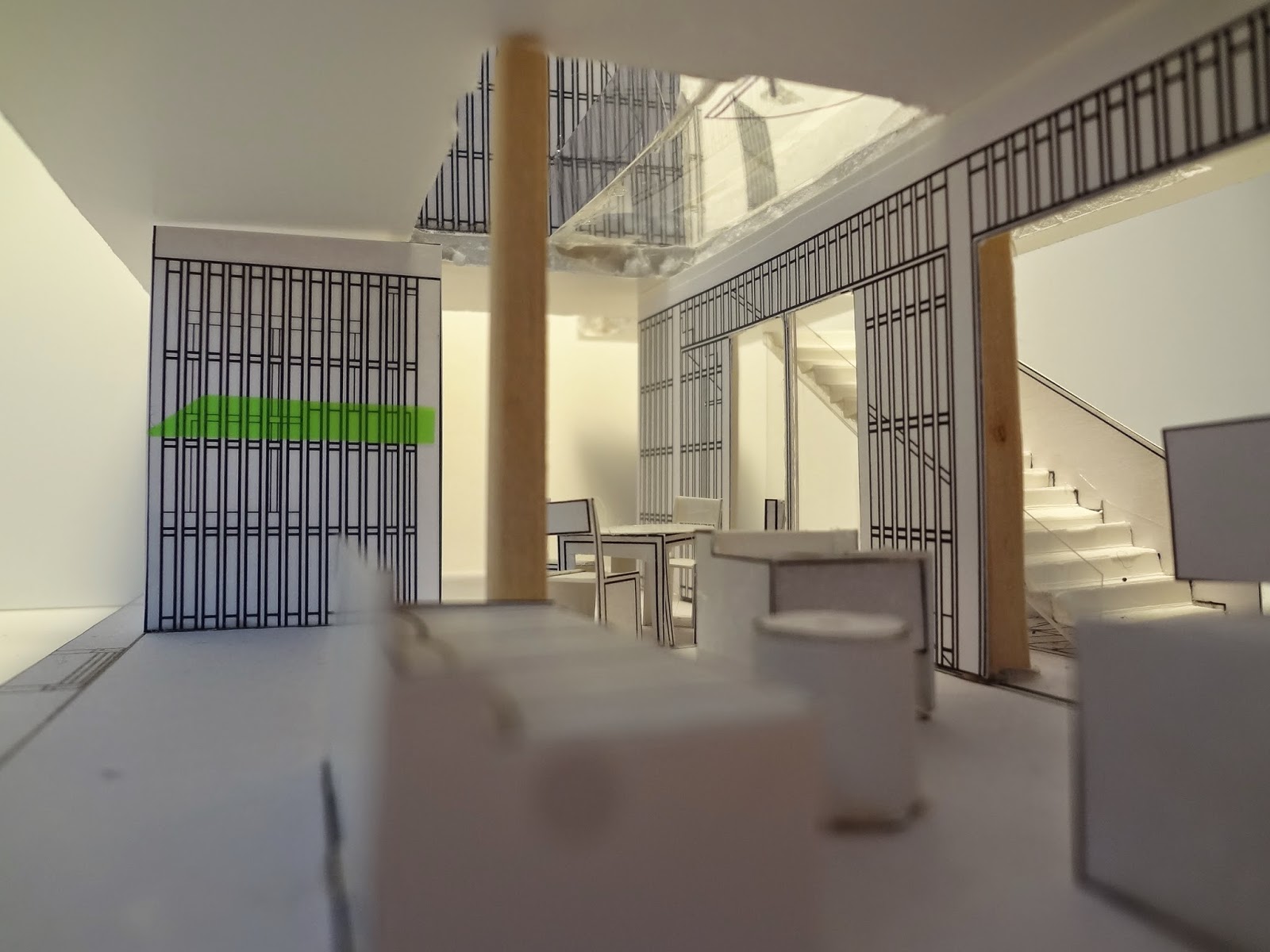

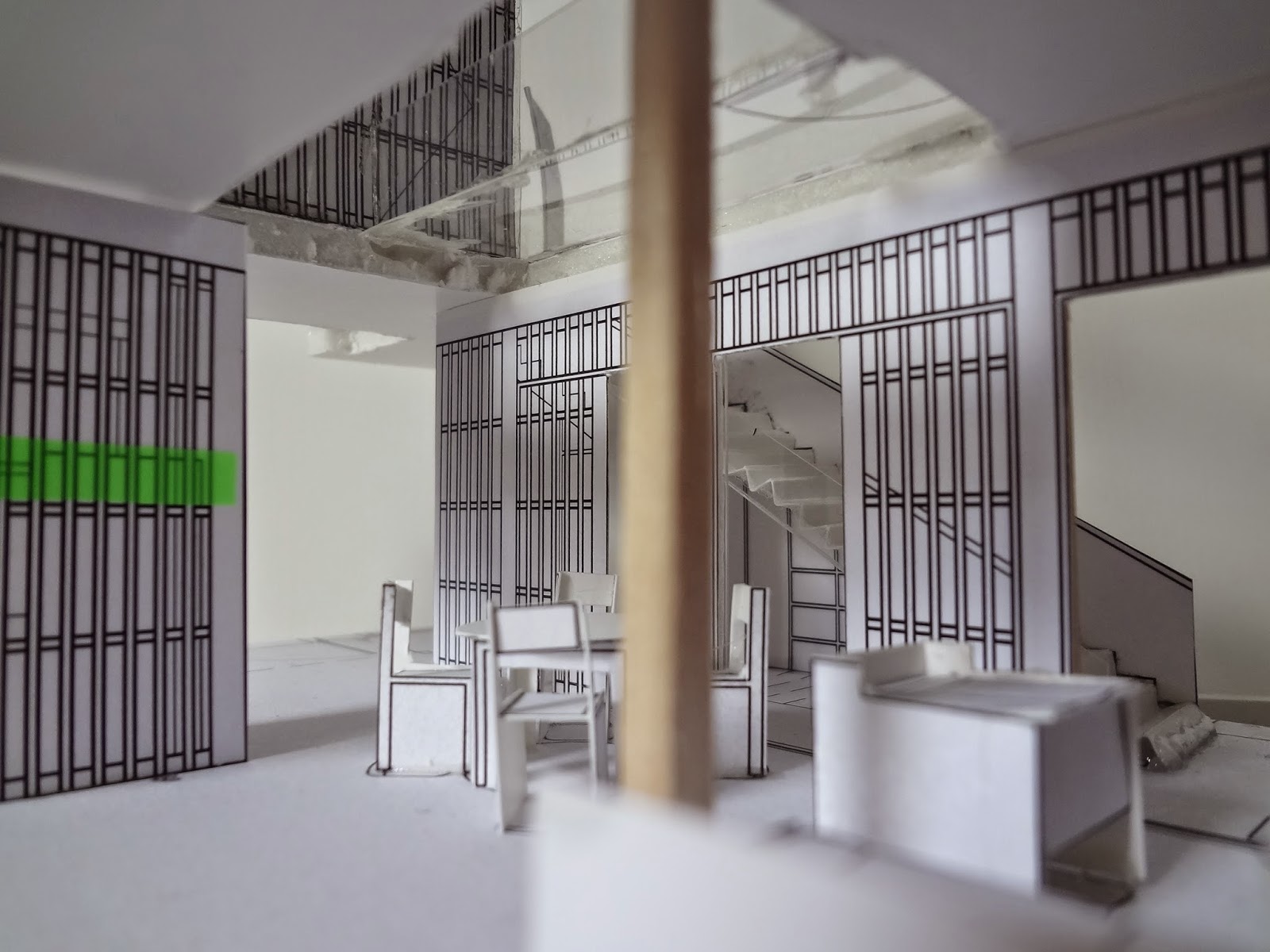

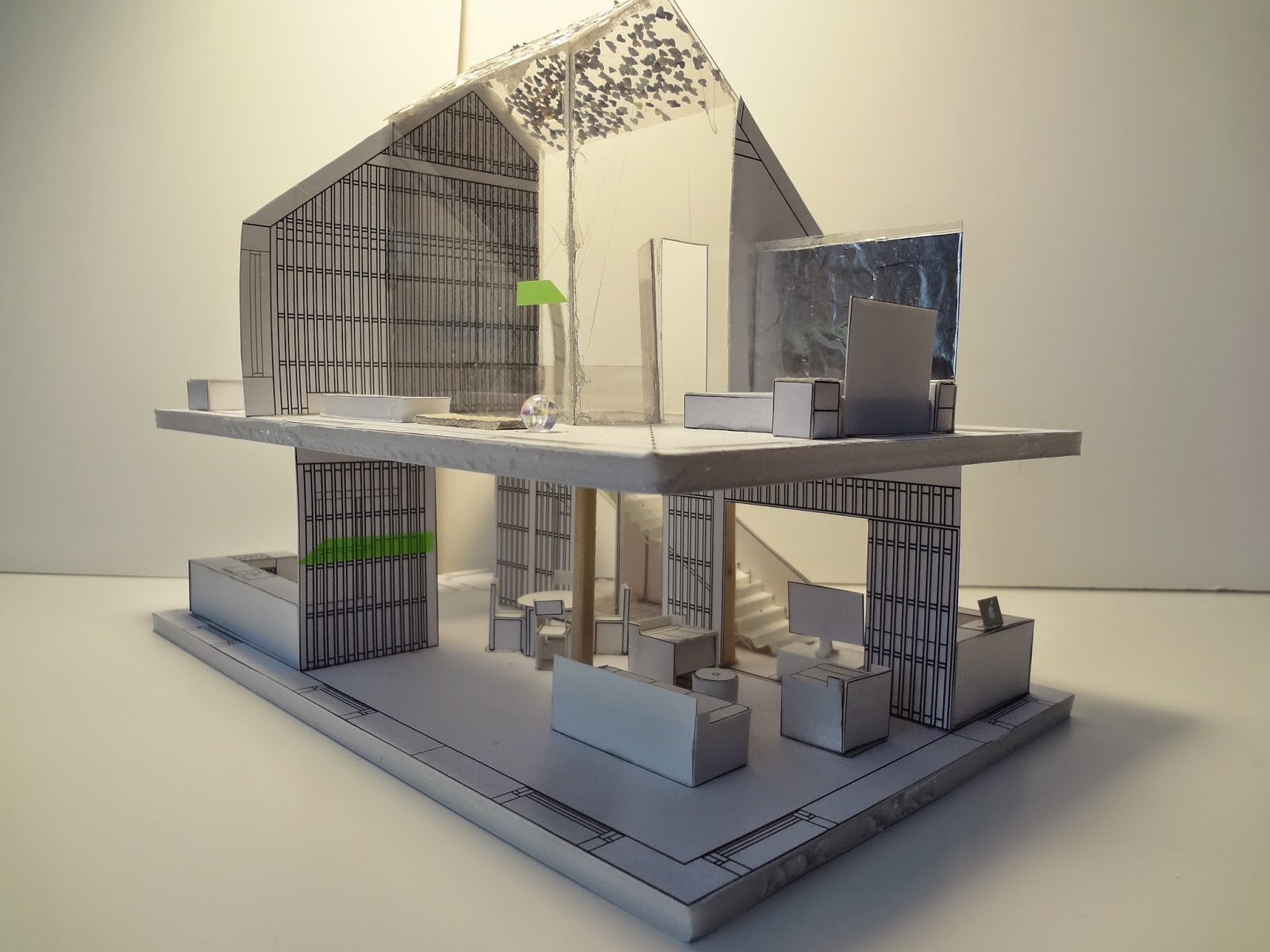

[3 SEP, 2014] I had worked all night to finish my 3D model for my Residential Design class presentation (Blue and  green post-it notes were to indicate 1500mm height in the house). You can view the Brief, my design concept, and the concept models in my previous post.


This model was the biggest model I’ve made since I started my school in Feb 2014!!!  Last semester, I had designed a kitchen and a bathroom–I wasn’t expected to design a two-storied house so soon!!!!!!!! I felt that this was a big leap in the degree of difficulty!!


There are still room for improvements, but I’m pretty happy with this considering it is only my 3rd model.  I pasted printed-out image for timber walls, but I want to make more realistic timber walls next time (so that I can show the things behind the timber wall gaps) I’ll look for materials to make to do that–maybe bamboo?


【２０１４年９月１６日】また徹夜続きでした。。。ドローイングの色塗りも終わり、プレゼンテーションボードも完成。今日、先生に見せたら好感触で嬉しい！大変なプロセスだっただけに達成感もすごい！今週金曜日の別の大きなプレゼンに向けてもうひと頑張りしたら、学校は２週間の休み！（たまには寝ないとね）


【２０１４年９月３日】徹夜で住宅デザインのクラスプレゼン用の３Dモデルを作りました（青とグリーンの付箋は１５００mmの目線の高さを示す為に貼ってます）。ここまでのプロセスはここで見れます。


２０１４年２月に学校に入学して以来、こんな大きなモデルを作るのは初めて！！前学期はキッチンやバスルームのデザインをしたけど、まさかこんなにすぐ２階建ての家のデザインをするとは想定外！難易度が全然違う！！


改善出来るところはまだまだあるけど、３つ目の３Dモデルとしてはかなり満足の出来。今回は組子風の木枠の壁は印刷した紙を貼付けたけど、次回はもっと本物に近い精巧な壁を作りたい（組子風の木枠の隙間から、壁の後ろにある物が透けて見えるようにしたい）細い組子風の木枠を実際の５０分の１の大きさで作る為に、どんな素材を使ったら良いのかリサーチしようと思ってる（日本人のクラスメートが竹ひごがいいんじゃないのと提案してくれたけど）
